| Component parameter name | Parameter |
|---|---|
| Nominal output electrical power | 5.0 kW |
| Maximum output electrical power | 5.0 kW |
| Anode type | Fixed bifocal anode |
| The size of the focal point | Small focus 0.6 mm, large focus 1.2 mm |
| Anode heat capacity | 60 kJ (80 kHU) |
| Continuous anode input power | 560W (maximum duration: 10 minutes) |
| Combined head heat capacity | 840 kJ (1200 kHU) |
| Heat dissipation rate | 120 W |
| Intrinsic filtration | ≥2.5 mm Al / 75 kV, < 2.7 mm Al / 75 kV |
| Beam limiter control | Horizontal / vertical double leaf opening |
| Variable additional filtration | 0, 0.1mm Cu + 1mm Al, 0.2mm Cu + 1mm Al, 1mm Cu + 1mm Al |

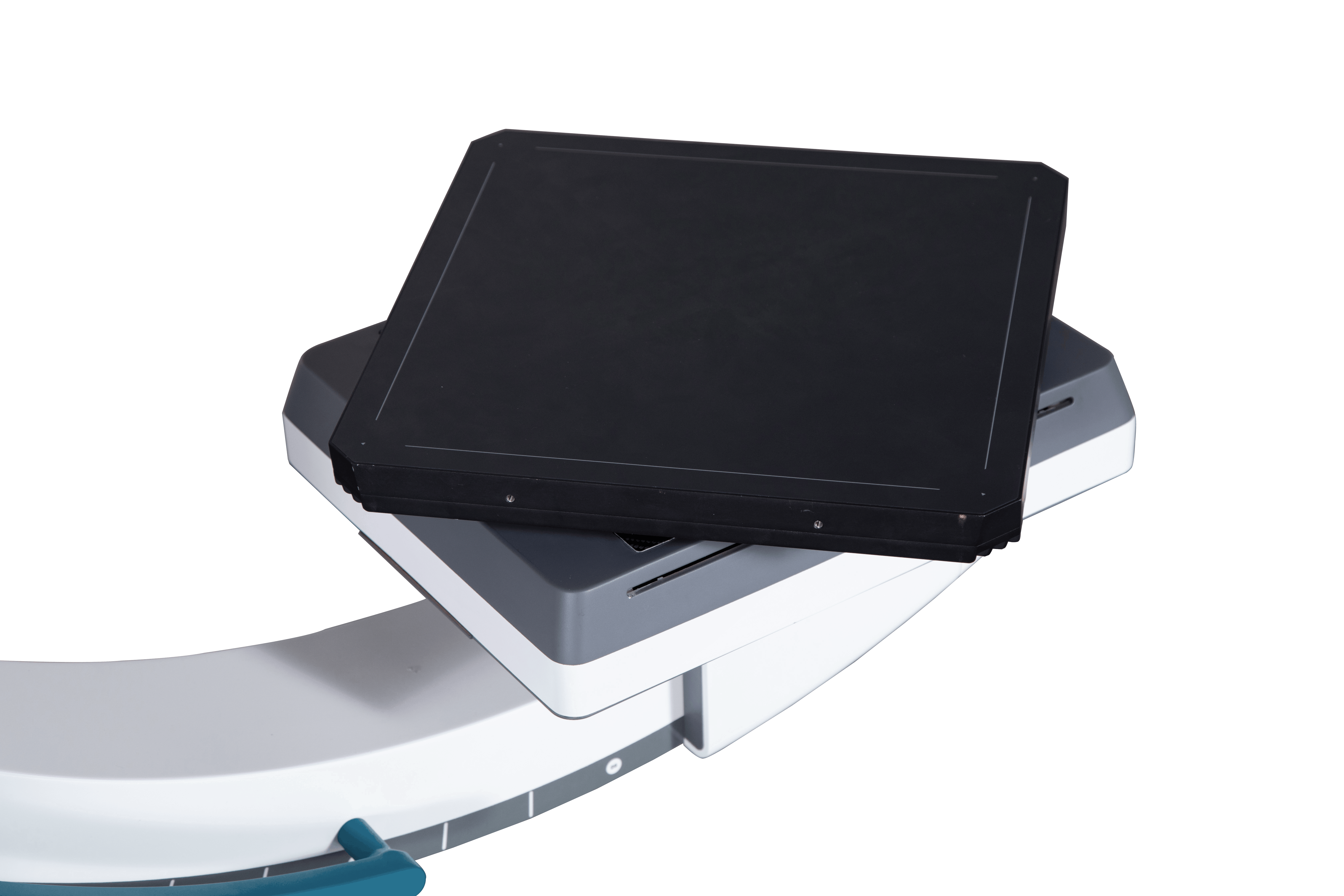

| Component parameter name | Parameter |
|---|---|
| Material | Amorphous silicon/cesium iodide |
| Size | 236.5mm × 236.5mm |
| Pixel | 154 μm |
| A/D conversion | 16 bit |
| Pixel matrix | 1536 × 1536 |
| Spatial resolution | Fluoroscopy mode 2.5 lp/mm, Photography mode 2.8 lp/mm, Limiting Resolution 3.2 lp/mm |
| Filter grids | Grid ratio 10:1, grid density 230 L/INCH Spring-loaded, can be disassembled without tools |

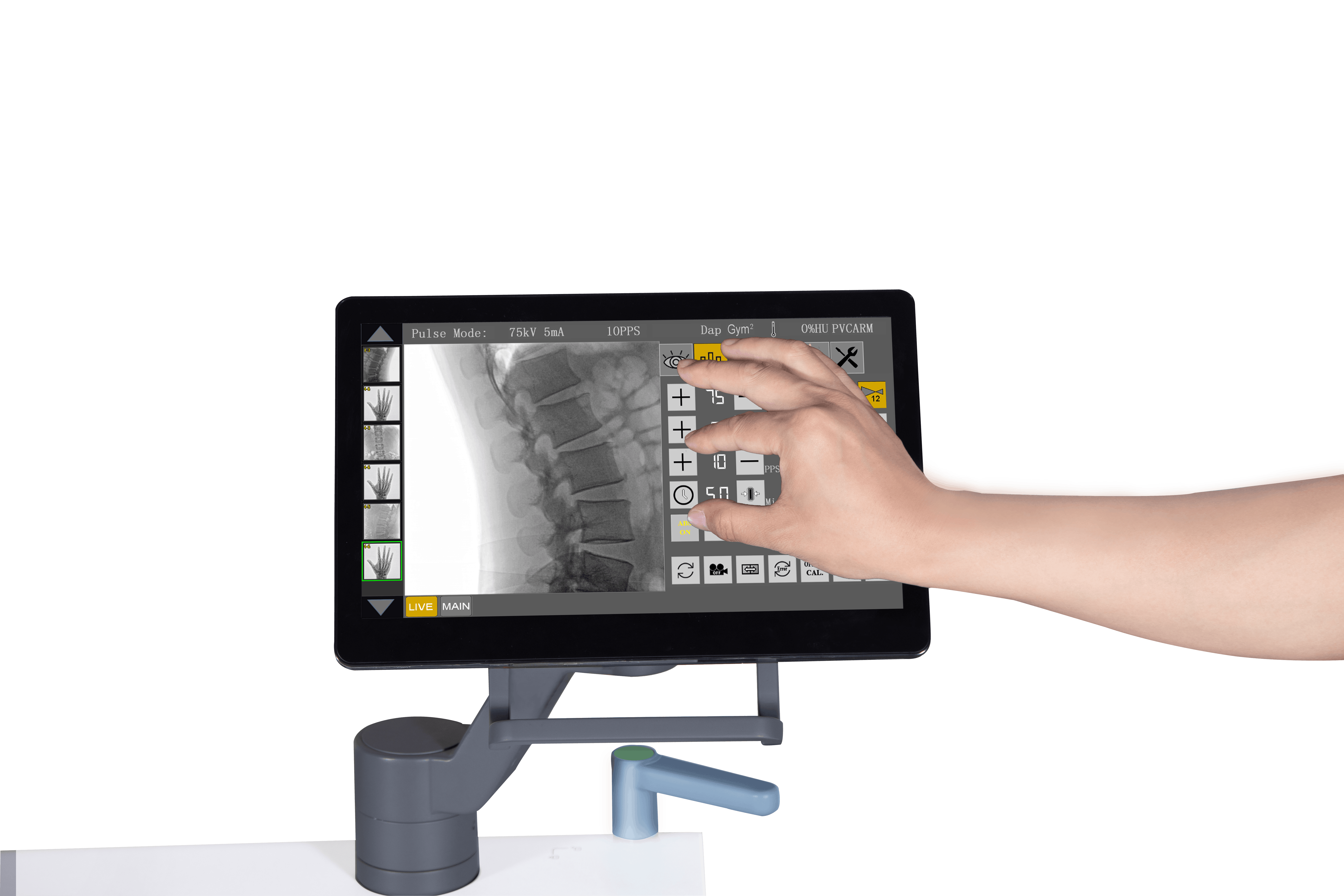

| Component parameter name | Parameter |
|---|---|
| Touchscreen size | 13 inches |
| angle | 270° swivel/30° elevation |
| Tube voltage regulation range | 40kV-110kV (step 1kV) |
| Tube current regulation range | Continuous fluoroscopy: 0.2mA - 10mA (step 0.1mA); Pulse fluoroscopy: 2mA - 13mA (step 0.1mA / 1mA); High level fluoroscopy: 2mA-18mA (step 0.1mA / 1mA); Photography Mode: 20mA-63mA |
| Pulse acquisition rate | 0.5/1/2/3/5/7.5/10/15 frames/sec |
| Automatic fluoroscopy function | Possess |
| Maximum current value of digital spot film/photography | 63mA |
| current time product adjustment range | 1mAs-100mAs |
| APR program fluoroscopy | Possess, preset the fluoroscopy parameters of the abdomen, chest, feet, legs, pelvis, shoulders, skull, spine, hands, upper limbs and other parts |
| Pediatric dosing patterns | Possess |
| Imaging time | Fluoroscopy mode: 0.2s |
| Fluoroscopy stabilization time | Pulse fluoroscopy mode, when the maximum frame rate is 15fps, the image stabilization time: 0.9s |
| Component parameter name | Parameter |
|---|---|
| Pixel Depth | 16 bit |
| Hard disk storage | Solid-state drive |
| Function | 16 levels of denoising; Last Image Hold (LIH); Continuous acquisition and playback; Realize multiple ways of image grayscale value transformation; zooming in, zooming out, and panning of images; 360-degree real-time image rotation, mirroring; Automatic window width/level adjustment, image identification; kV,mA synchronous tracking; Dynamic compensation of image uniformity; medical records management; DICOM3.0 network printing; Worklist; Equipped with virtual beam limiter control and beam limiter field of view following function. |

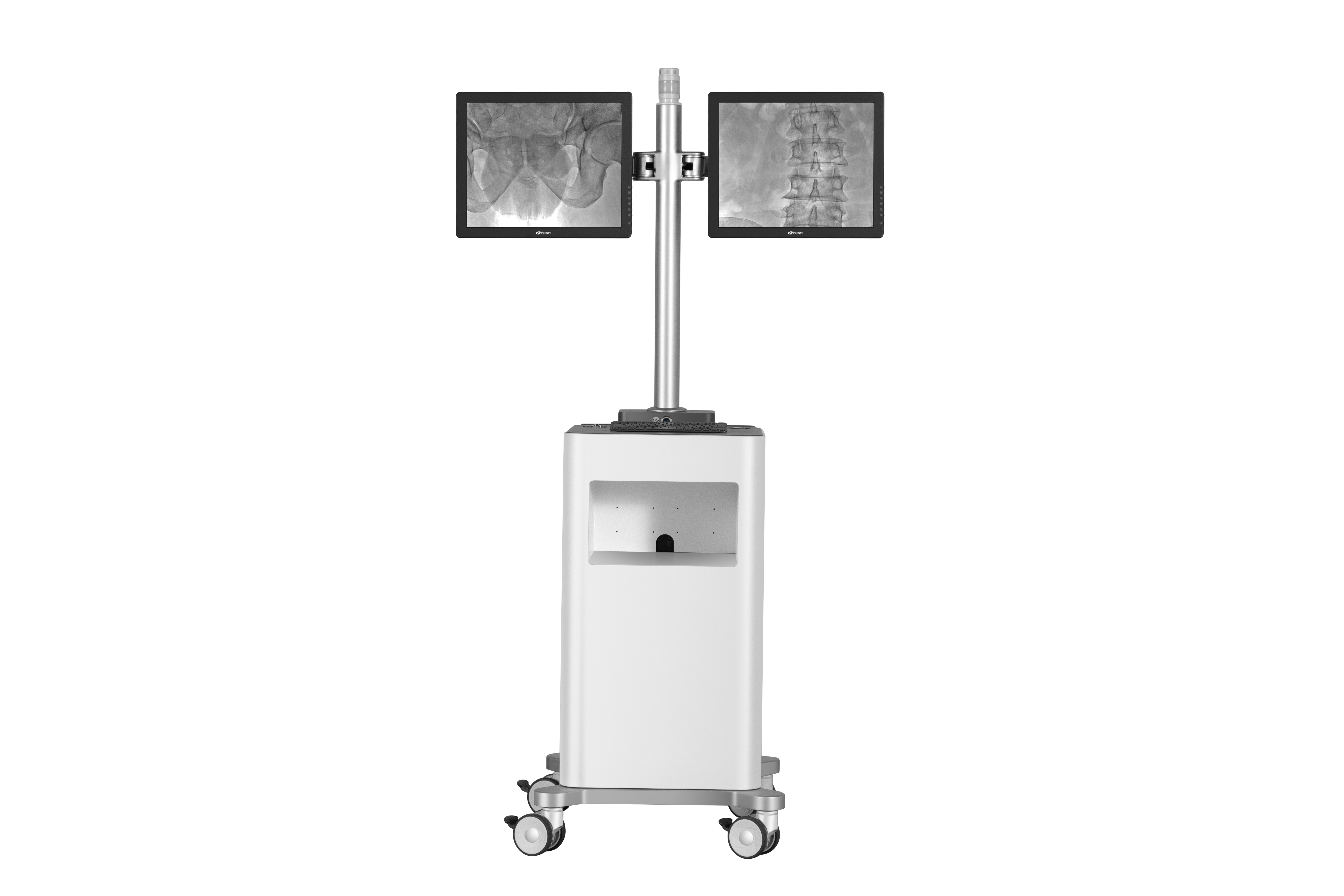

| Standard monitor | Two 19" medical grayscale displays (foldable): Resolution 1280×1024; Luminance 1300cd/m² ; Contrast ratio: 1000:1; The viewing angle is not less than 178° |
| Optional monitor | 27-inch 4K, 8M integrated automatic split-screen display; Resolution: 3840×2160; Luminance 800cd/m² ; Contrast ratio: 1000:1 |

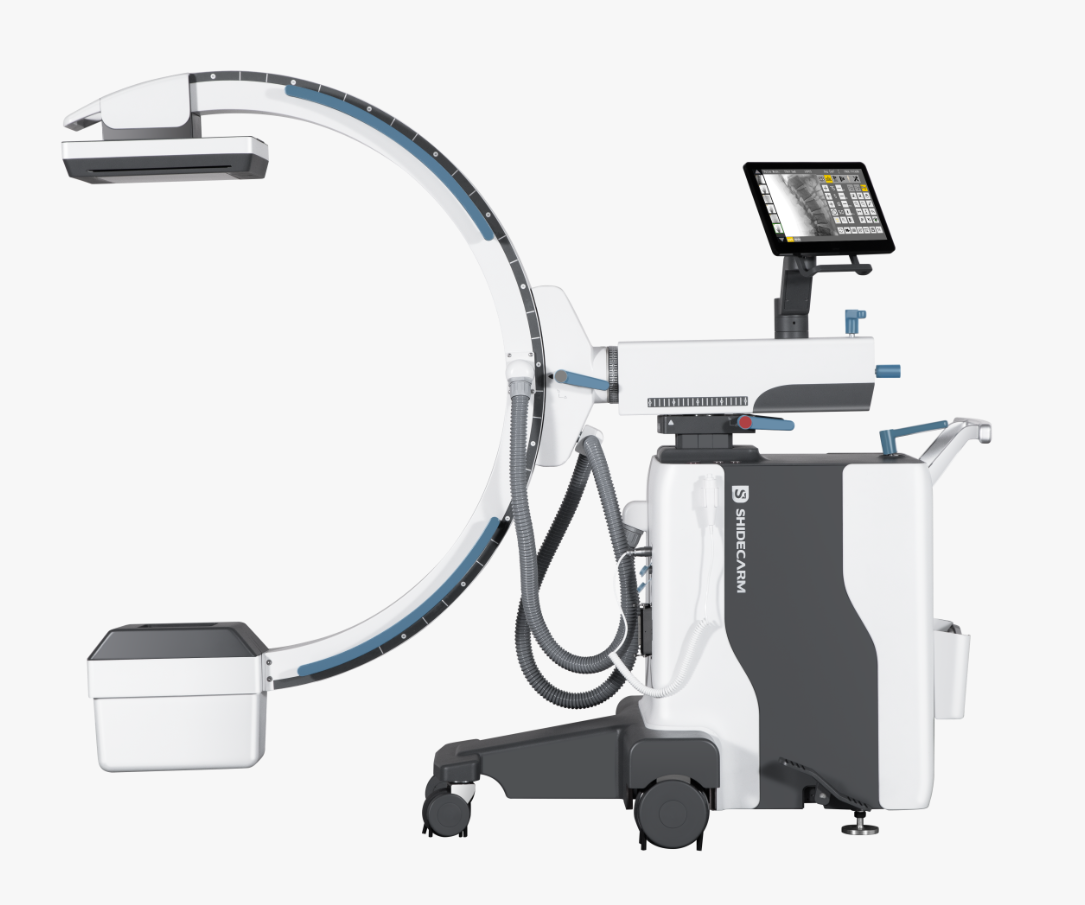

| Component parameter name | Parameter |
|---|---|
| X-ray warning lights | Possess, the C-arm and the workstation are displayed synchronously |
| The angle at which the C-arm slides along the track arc | 155° (90°~0°~-65°) |
| The C-arm slides along the track to start the torque | <13 N·m |
| C-arm horizontal movement distance | 200 mm |
| C-arm vertical movement distance | 400 mm (Electric) |
| C-arm rotates around the horizontal axis | ±240° |
| C-arm swing angle horizontally | ±15° |
| The arc depth of the C-arm | 725 mm |
| The opening distance of the C arm | 940 mm |
| SID | Source-Imaging Distance: 1150 mm |
| C-arm self-balancing function | Possess |
| C-arm starting force when moving on a flat concrete floor | 30 N |
| Component parameter name | Parameter |
|---|---|

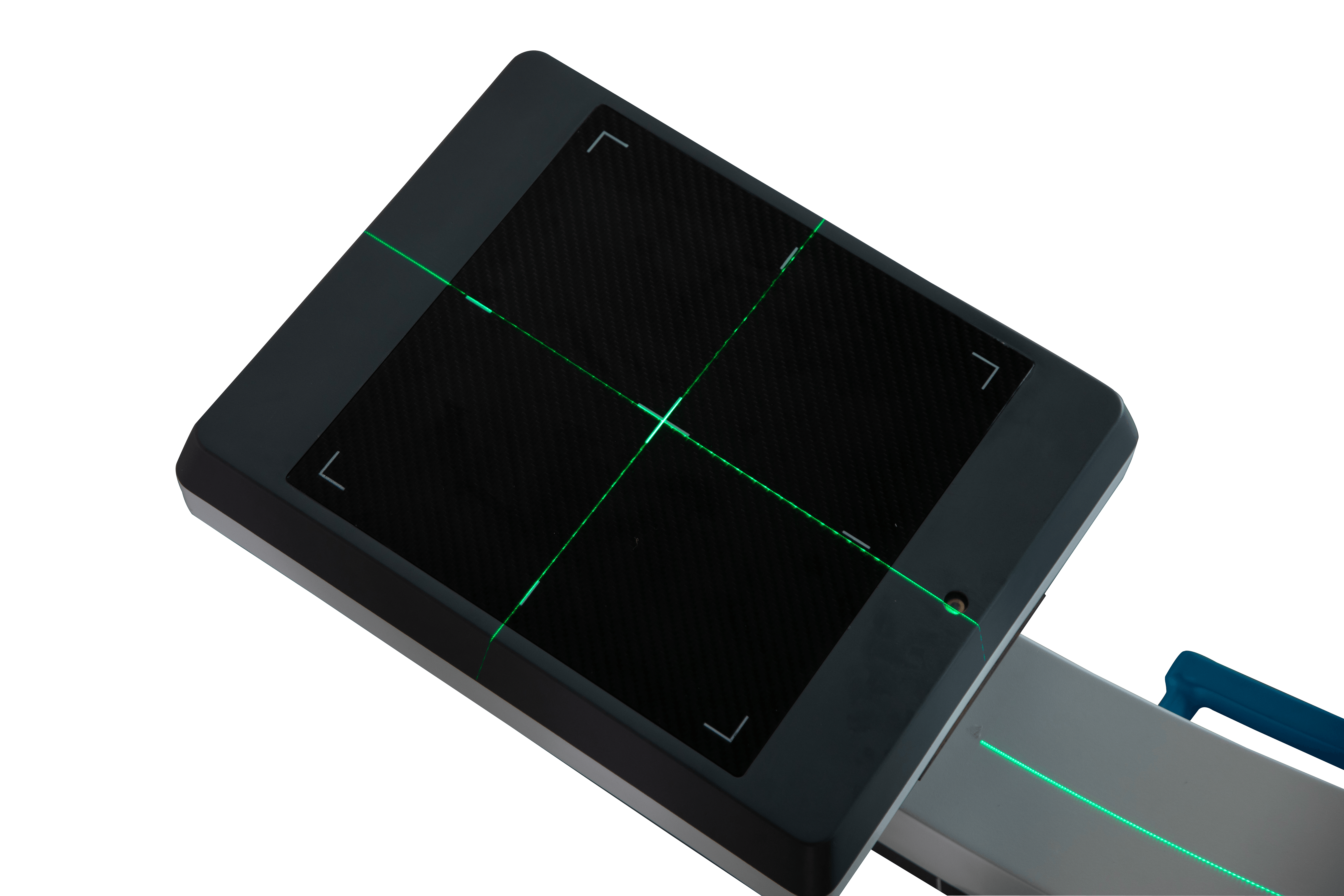

| Laser positioning system | Possess, green bidirectional high-quality laser device |
| Component parameter name | Parameter |
|---|---|
| Single-phase AC power supply | 220V±10% |
| Power frequency | 50Hz±1Hz |
| Power capacity | 4.5kVA (instantaneous), 2.0kVA (continuous) |
| No. | Configuration name | Unit | Qty. |
|---|---|---|---|
| 1 |
Combined head (including high-voltage generator and X-ray tube) |
Set |
1 |
| 2 |
High-frequency inverters |
Set |
1 |
| 3 |
Beam limiter |
Set |
1 |
| 4 |
Flat panel detector |
Set |
1 |
| 5 |
Laser positioning system |
Set |
2 |
| 6 |
Image acquisition and processing system (including workstation configuration and software) |
Set |
1 |
| 7 |
Touch-sensitive X-ray control unit |
Set |
1 |
| 8 |
Monitor |
Set |
2 |
| 9 |
Mobile trolley ( including isolation transformer) |
Set |
1 |
| 10 |
C-arm rack |
Set |
1 |
| 11 |
Filter grid |
Set |
1 |
| 12 |
Foot switch, cables, and connecting cables |
Set |
1 |
| No. | Configuration name | Unit |
|---|---|---|
| 1 | 27-inch 4K, 8M integrated automatic split-screen monitor | set |
| 2 | Wireless exposure remote control | set |
| 3 | Uninterruptible power supply | set |
